API Request

The API Request element allows you to make API calls directly within an IVR flow. Data returned from the request — such as a customer's account balance or contact details — can then be passed through the IVR and used in subsequent elements.

Connections

ConnectionDescription
I – InputThe entry point for this element. Connect from the preceding element in your IVR flow.
O – OutputThe path taken when the API request has been successfully processed.
E – ErrorThe path taken if the element encounters an error during processing.

Settings

FieldDescription
NameGive the element a clear name so it is easy to identify within your IVR flow. The name is referenced by other elements, so keep it as a single word with no spaces.
DescriptionOptional. Add a note to explain the element's purpose — useful in more complex flows.
Agent Can See ThisWhen enabled, agents can transfer a live caller directly to this element via the IVR Transfer option.
Supervisor Can See ThisWhen enabled, the element is visible in the IVR Transfer list for users with a Supervisor role. It remains hidden from all other users.
Result CodeSelect a result code for this element, or leave it set to the default. If the default is selected, INBOUND will be applied when a call ends at this element.
PhraseSelect the audio file(s) to play to the caller while the API request is being processed.
ActionSelect the type of API request to perform:
  • GET — retrieves existing data without making any changes. Use this to read information such as account details, order history, or record status.
  • POST — creates a new record. Use this when submitting data that doesn't already exist.
  • PUT — updates or replaces an existing record. Use this when you need to modify information that's already stored.
Timeout (s)Set the maximum time in seconds the element will wait for the API to respond before moving on.
URLThe address of the resource you want to interact with. Dynamic fields can be pulled into the URL using double curly braces — see Using API data within the IVR below for details.
HeaderProvide the details required for the request to be authenticated, such as an API key or token. If multiple headers are needed, separate them with a comma.
BodyUsed for POST or PUT requests. This contains the data you want to create or update via the API. For GET requests, the body can be left empty.

Using API data within the IVR

Data returned from an API Request element can be read back to the caller or passed to other elements for routing. The two most common approaches are covered below.

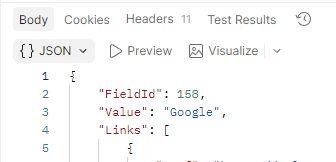

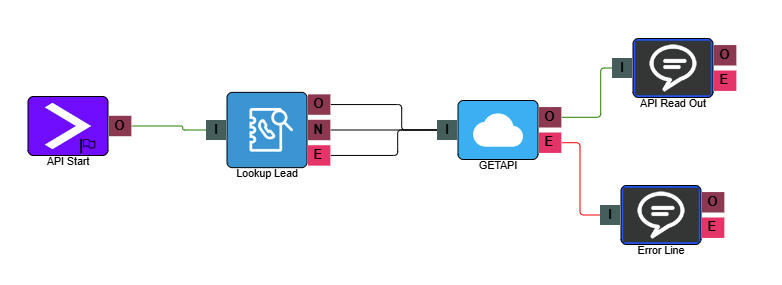

Body output of the GET request.Example IVR set up for TTS to read out the API value.


Reading API data back to the caller

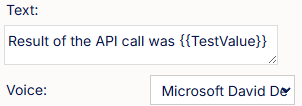

To have a value from your API response read aloud to the caller, use a Text to Speech element with a reference to the API Request element using the following syntax:

{{Name of API Request element.Result.Name of value within the body}}

With the example above, our API Request element is named GETAPI and the value to be read out from the API body is called Value. So within the API Read Out TTS we would place the following:

{{GETAPI.Result.Value}}

Using API data in other elements

To use a value from your API response in other elements — such as a Branch or Compare element — use a Set Property element to store the value first.

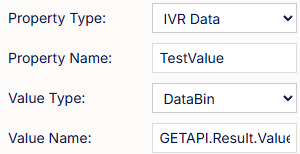

Within the Set Property element, configure the following:


Field
Value
Property TypeIVR Data - the value is created during the live call.
Property NameA unique name with no spaces, for example, LeadField.
Value TypeDataBin - the source of the data from within the IVR.
Value NameThe reference to the API response value, using the format:
Name of API Request element.Result.Item name from API body
For example: GETAPI.Result.Value

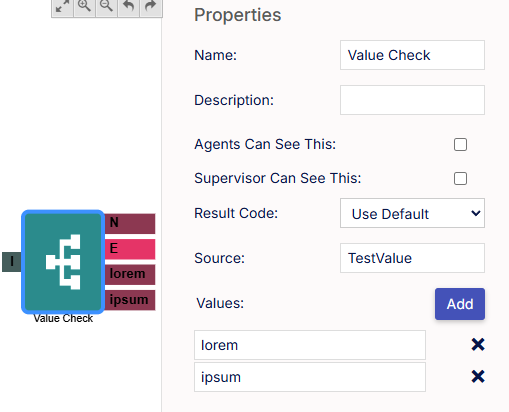

Once stored, you can reference the Property Name in a Branch element's Source field to route the call based on the returned value.

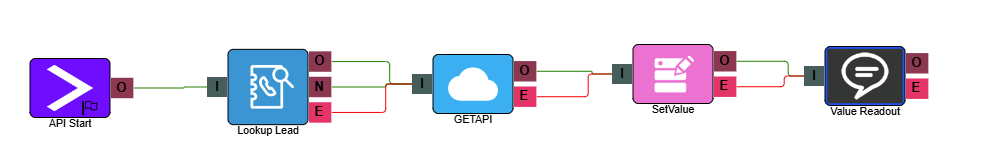

Example setup – MaxContact Lead Web API

The following example walks through using the MaxContact Lead Web API to retrieve a secondary data field and read it back to the caller. Before you begin, make sure the following are in place:

  • The inbound call must be matched to a lead. Use a Lookup Lead or Create Lead element earlier in the flow to ensure this.
  • A user account must be configured with MaxContact API permissions. A dedicated API account is recommended.
  • Test your API call in a tool such as Postman before implementing it in the IVR, to confirm the response is correct.


Note: While this example uses the MaxContact API, the API Request element supports calls to external APIs too. Check with your provider whether any whitelisting is required to allow outbound API calls.


Step 1 – Lookup Lead element

Use a Lookup Lead element to ensure the inbound call is matched to the correct lead before reaching the API Request element.

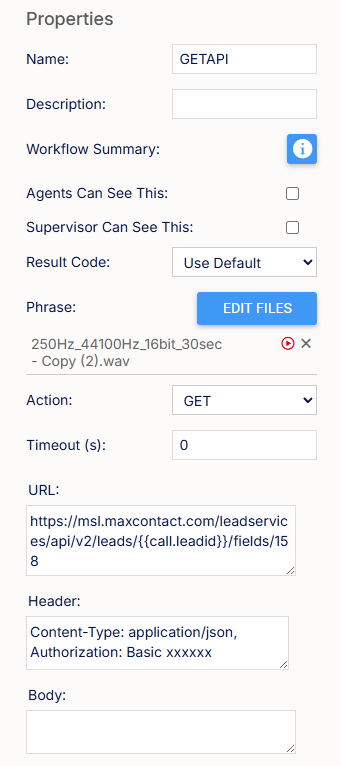

Step 2 – API Request element

Configure the element as follows:

Field
Value
NameGETAPI - keep the name unique and free of spaces as it will be referenced in later elements
ActionGET
URLhttps://domain.maxcontact.com/leadservices/api/v2/leads/{{call.leadid}}/fields/fieldvalue

Replace domain with your MaxContact instance address, and fieldvalue with the ID of the secondary field you want to retrieve. Use the Get Lead by ID method to find the correct field ID.
HeaderContent-Type: application/json,
Authorization: Basic [base64 encoded login:password]

Combine your username and password in the format login:password and Base64 encode the string before adding it here.
BodyLeave empty - this is a GET request.


Step 3 – Set Property element

Use a Set Property element to store the API response value for use later in the flow, configured as described in Using API data within the IVR above.


Step 4 – Text to Speech element

Reference the property created in Step 3 within a Text to Speech element to read the retrieved value back to the caller.

Appendix – Call Variables

VariableDescription
call.referenceidReference saved against the lead.
call.nameFirst name saved against the lead.
call.name2Second name saved against the lead.
call.addressFirst line of address saved against the lead.
call.cityCity or region saved against the lead.
call.postalcodePost code saved against the lead.
call.phonenumThe phone number of the caller.
call.leadidThe lead ID of the caller.
call.dnisThe DNIS or inbound number for the call.
call.campaignidThe ID of the campaign associated with the call.
call.listidThe ID of the list associated with the call.
